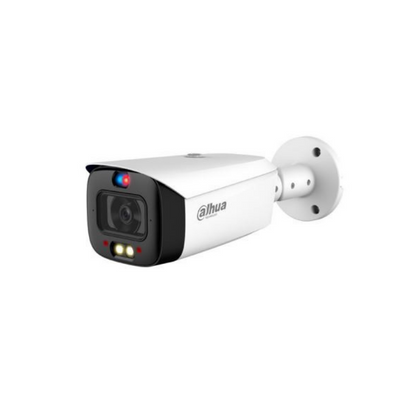

IPC-HFW3849T1-ZAS-PV

*The parameters and datasheets below can only be applied to 3849-PV-S5 series.

> 8-MP 1/2.8" CMOS image sensor, low luminance, and high definition image.

> Outputs max. 8 MP (3840 × 2160 )@25/30 fps.

> H.265 codec, high compression rate, ultra-low bit rate.

> Built-in warm light and IR LED; the max. IR illumination distance is 50 m and warm light distance is 40 m.

> ROI, SMART H.264+/H.265+, AI H.264/H.265, flexible coding, applicable to various bandwidth and storage environments.

> Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.

> Intelligent monitoring: Intrusion, tripwire (the two function support the classification and accurate detection of vehicle and human)

> Abnormality detection: Motion detection, privacy masking, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.

> Alarm: 1 in, 1 out; audio: 1 in, 1 out; supports max. 512 G Micro SD card; built-in dual Mic; 1-ch speaker; support two-way talk.

> 12 VDC/PoE power supply.

> IP67 protection.

> Sound and light alarm (red and blue lights).

> SMD 4.0.

> Supports AI SSA and one-tap arming and disarming.

SMD area can be set in warm light areas that support triggering alarms.
